タカチ特設ページ

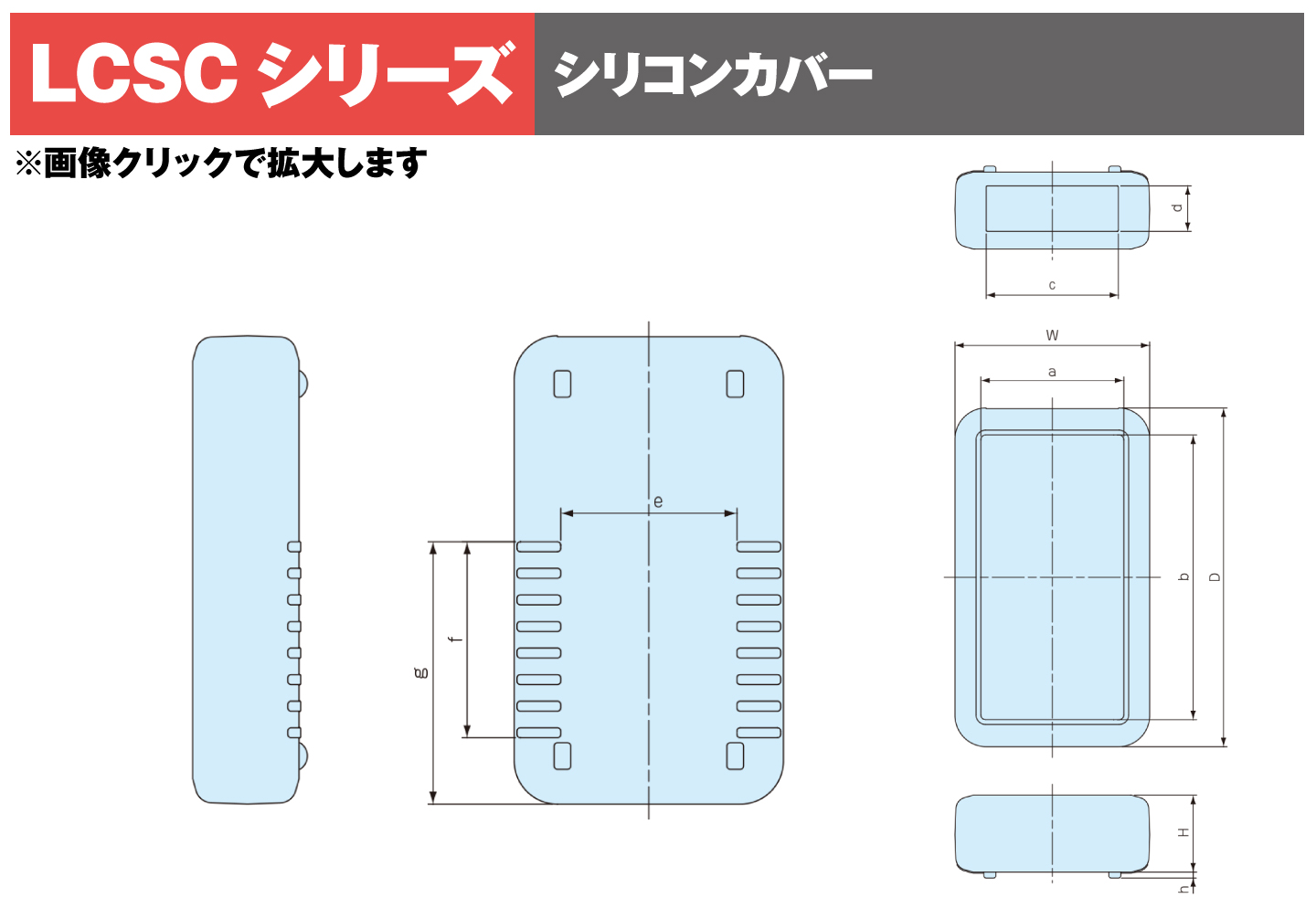

型番	W	H	D	a	b	c	d	e	f	g	h	対応機種	自重（g）
LCSC135-R	81	32	141	59.5	118.5	55	19	53	59	79	2.5	LC135	70
LCSC135-Y	81	32	141	59.5	118.5	55	19	53	59	79	2.5	LC135	70
LCSC135-G	81	32	141	59.5	118.5	55	19	53	59	79	2.5	LC135	70
LCSC135-B	81	32	141	59.5	118.5	55	19	53	59	79	2.5	LC135	70
LCSC135-D	81	32	141	59.5	118.5	55	19	53	59	79	2.5	LC135	70
LCSC135-L	81	32	141	59.5	118.5	55	19	53	59	79	2.5	LC135	70
LCSC115-R	74	24	120	55.5	101.5	48.3	12	46	44.5	60.5	2	LC115	43
LCSC115-Y	74	24	120	55.5	101.5	48.3	12	46	44.5	60.5	2	LC115	43
LCSC115-G	74	24	120	55.5	101.5	48.3	12	46	44.5	60.5	2	LC115	43
LCSC115-B	74	24	120	55.5	101.5	48.3	12	46	44.5	60.5	2	LC115	43
LCSC115-N	74	24	120	55.5	101.5	48.3	12	46	44.5	60.5	2	LC115	43
LCSC115-D	74	24	120	55.5	101.5	48.3	12	46	44.5	60.5	2	LC115	43
LCSC115-L	74	24	120	55.5	101.5	48.3	12	46	44.5	60.5	2	LC115	43
LCSC115H-R	74	32.5	120	55.5	101.5	48.3	20.5	46	44.5	60.5	2	LC115H	50
LCSC115H-Y	74	32.5	120	55.5	101.5	48.3	20.5	46	44.5	60.5	2	LC115H	50
LCSC115H-G	74	32.5	120	55.5	101.5	48.3	20.5	46	44.5	60.5	2	LC115H	50
LCSC115H-B	74	32.5	120	55.5	101.5	48.3	20.5	46	44.5	60.5	2	LC115H	50
LCSC115H-N	74	32.5	120	55.5	101.5	48.3	20.5	46	44.5	60.5	2	LC115H	50
LCSC115H-D	74	32.5	120	55.5	101.5	48.3	20.5	46	44.5	60.5	2	LC115H	50
LCSC115H-L	74	32.5	120	55.5	101.5	48.3	20.5	46	44.5	60.5	2	LC115H	50
LCSC135-N	81	32	141	59.5	118.5	55	19	53	59	79	2.5	LC135	70
LCSC135H-R	81	40	141	59.5	118.5	55	27	53	59	79	2.5	LC135H	75.5
LCSC135H-Y	81	40	141	59.5	118.5	55	27	53	59	79	2.5	LC135H	75.5
LCSC135H-G	81	40	141	59.5	118.5	55	27	53	59	79	2.5	LC135H	75.5
LCSC135H-B	81	40	141	59.5	118.5	55	27	53	59	79	2.5	LC135H	75.5
LCSC135H-N	81	40	141	59.5	118.5	55	27	53	59	79	2.5	LC135H	75.5
LCSC135H-D	81	40	141	59.5	118.5	55	27	53	59	79	2.5	LC135H	75.5
LCSC135H-L	81	40	141	59.5	118.5	55	27	53	59	79	2.5	LC135H	75.5
LCSC145S-R	101	25	151	76.5	125.5	71	12	71	59	81	2.5	LC145S	73.4
LCSC145S-Y	101	25	151	76.5	125.5	71	12	71	59	81	2.5	LC145S	73.4
LCSC145S-G	101	25	151	76.5	125.5	71	12	71	59	81	2.5	LC145S	73.4
LCSC145S-B	101	25	151	76.5	125.5	71	12	71	59	81	2.5	LC145S	73.4
LCSC145S-N	101	25	151	76.5	125.5	71	12	71	59	81	2.5	LC145S	73.4
LCSC145S-D	101	25	151	76.5	125.5	71	12	71	59	81	2.5	LC145S	73.4
LCSC145S-L	101	25	151	76.5	125.5	71	12	71	59	81	2.5	LC145S	73.4
LCSC145-R	101	32	151	76.5	125.5	71	19	71	59	81	2.5	LC145	81
LCSC145-Y	101	32	151	76.5	125.5	71	19	71	59	81	2.5	LC145	81
LCSC145-G	101	32	151	76.5	125.5	71	19	71	59	81	2.5	LC145	81
LCSC145-B	101	32	151	76.5	125.5	71	19	71	59	81	2.5	LC145	81
LCSC145-N	101	32	151	76.5	125.5	71	19	71	59	81	2.5	LC145	81
LCSC145-D	101	32	151	76.5	125.5	71	19	71	59	81	2.5	LC145	81
LCSC145-L	101	32	151	76.5	125.5	71	19	71	59	81	2.5	LC145	81
LCSC145H-R	101	40	151	76.5	125.5	71	27	71	59	81	2.5	LC145H	89
LCSC145H-Y	101	40	151	76.5	125.5	71	27	71	59	81	2.5	LC145H	89
LCSC145H-G	101	40	151	76.5	125.5	71	27	71	59	81	2.5	LC145H	89
LCSC145H-B	101	40	151	76.5	125.5	71	27	71	59	81	2.5	LC145H	89
LCSC145H-N	101	40	151	76.5	125.5	71	27	71	59	81	2.5	LC145H	89
LCSC145H-D	101	40	151	76.5	125.5	71	27	71	59	81	2.5	LC145H	89
LCSC145H-L	101	40	151	76.5	125.5	71	27	71	59	81	2.5	LC145H	89
LCSC165-R	85	32	171	63.5	148.5	59	19	53	67	92	2.5	LC165	82.5
LCSC165-Y	85	32	171	63.5	148.5	59	19	53	67	92	2.5	LC165	82.5
LCSC165-G	85	32	171	63.5	148.5	59	19	53	67	92	2.5	LC165	82.5
LCSC165-B	85	32	171	63.5	148.5	59	19	53	67	92	2.5	LC165	82.5
LCSC165-N	85	32	171	63.5	148.5	59	19	53	67	92	2.5	LC165	82.5
LCSC165-D	85	32	171	63.5	148.5	59	19	53	67	92	2.5	LC165	82.5
LCSC165-L	85	32	171	63.5	148.5	59	19	53	67	92	2.5	LC165	82.5
LCSC165H-R	85	40	171	63.5	148.5	59	27	53	67	92	2.5	LC165H	86
LCSC165H-Y	85	40	171	63.5	148.5	59	27	53	67	92	2.5	LC165H	86
LCSC165H-G	85	40	171	63.5	148.5	59	27	53	67	92	2.5	LC165H	86
LCSC165H-B	85	40	171	63.5	148.5	59	27	53	67	92	2.5	LC165H	86
LCSC165H-N	85	40	171	63.5	148.5	59	27	53	67	92	2.5	LC165H	86
LCSC165H-D	85	40	171	63.5	148.5	59	27	53	67	92	2.5	LC165H	86
LCSC165H-L	85	40	171	63.5	148.5	59	27	53	67	92	2.5	LC165H	86
