Automotive Intelligent Power Device Single Channel 20 mΩ High Side Switch(BV1HB020EFJ-CE2) ◆ROHM 取寄品◆
BV1HB020EFJ-C
| web販売価格 : | ￥313(税込) 注文受付単位：10 |
|---|---|
| 数量割引価格 : |
▼数量割引価格▼ ￥284 / 50個〜 ￥247 / 100個〜 ￥218 / 500個〜 ￥195 / 1000個〜 ￥178 / 2500個〜 ￥166 / 5000個〜 ￥166 / 12500個〜 ￥166 / 25000個〜 |
| 在庫 : | ショップ欠品中 |
| 送料区分 : | 宅配便(ヤマト運輸) |
| メーカー : | ローム(ROHM) |
| 商品コード : | Q7TBZT |
| 品名／型番 : | Automotive Intelligent Power Device Single Channel 20 mΩ High Side Switch(BV1HB020EFJ-CE2) ◆ROHM 取寄品◆ / BV1HB020EFJ-C |
| 登録日 : | 2026.9.25 |
概要
※表示されている在庫数はROHM社の「1〜2営業日前の在庫数」であり、弊社の実在庫数ではございません。

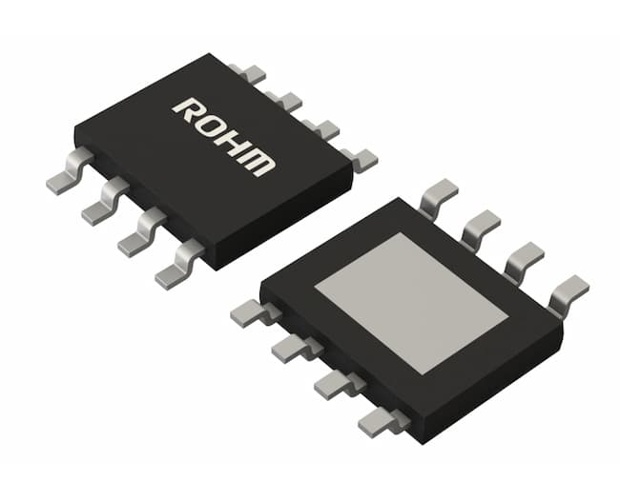

The BV1HB020EFJ-C single channel 20 mΩ Intelligent High Side Power Device integrates an Overcurrent load protection, a dual Temperature Shutdown mechanism which limits the internal thermal transients and reduces the mechanical stress of the IC, and a smart Active-Clamp circuit to dissipate the magnetic energy while switching off inductive loads and to protect internal circuits from overvoltage surges. Embedded Current Sense and Diagnostic features provide real time load current information and open or short circuit feedback in both on and off state. A 3 V and 5 V CMOS compatible input pin offers direct microcontroller connection without special interfaces or level shifters. These in conjunction with a wide input voltage range make the High Side IPD a highperformance component suitable for 12 V battery connected automotive applications.
※在庫欄の表示(納期)については目安の為、納期を保証するものではありません。
メーカーの在庫状況により、ご注文数をご用意できない場合がございますので、あらかじめご了承ください。
The BV1HB020EFJ-C single channel 20 mΩ Intelligent High Side Power Device integrates an Overcurrent load protection, a dual Temperature Shutdown mechanism which limits the internal thermal transients and reduces the mechanical stress of the IC, and a smart Active-Clamp circuit to dissipate the magnetic energy while switching off inductive loads and to protect internal circuits from overvoltage surges. Embedded Current Sense and Diagnostic features provide real time load current information and open or short circuit feedback in both on and off state. A 3 V and 5 V CMOS compatible input pin offers direct microcontroller connection without special interfaces or level shifters. These in conjunction with a wide input voltage range make the High Side IPD a highperformance component suitable for 12 V battery connected automotive applications.
※在庫欄の表示(納期)については目安の為、納期を保証するものではありません。
メーカーの在庫状況により、ご注文数をご用意できない場合がございますので、あらかじめご了承ください。
詳細
【特長】
AEC-Q100 Qualified(Grade 1)
Short Circuit Load Protection
Overcurrent Limitation
Active Clamp and Overvoltage Protection
Dual Temperature Shutdown
Undervoltage Lock Out
Integrated Current SENSE Circuit
Loss of Ground Protection
Open Load and Short to Battery Diagnostics
【特性】
・Type：High side switches
・Generation：GEN3
・Qualification Grade：AEC-Q100 (Automotive Grade)
・Feature：Current Sense
・Overcurrent Protection：Limitation
・Thermal Shut Down：Self-restart
・Channel Number [ch]：1
・ON Resistance(Typ.)[mΩ]：20
・ON Resistance(Max.)[mΩ]：44
・DC Output Current @Ta=85℃ [A]：6.7
・Supply Voltage(Min.)[V]：6
・Supply Voltage(Max.)[V]：28
・Drain-Source Voltage (Max.)[V]：41
・Single Pulse Energy 25°C [mJ]：170
・Over Current Limit (Min.)[A]：34
・Under voltage Detection Level(Max.)[V]：4
・Current consumption(Typ.)[µA]：3000
・Open Load Detect [V]：2
・Junction Temperature Tj (Min.)[°C]：-40
・Junction Temperature Tj (Max.)[°C]：150
・Package Size [mm]：4.9x6.0 (t=1.0)
・包装形態：テーピング
・包装数量：2500
AEC-Q100 Qualified(Grade 1)
Short Circuit Load Protection
Overcurrent Limitation
Active Clamp and Overvoltage Protection
Dual Temperature Shutdown
Undervoltage Lock Out
Integrated Current SENSE Circuit
Loss of Ground Protection
Open Load and Short to Battery Diagnostics
【特性】
・Type：High side switches
・Generation：GEN3
・Qualification Grade：AEC-Q100 (Automotive Grade)
・Feature：Current Sense
・Overcurrent Protection：Limitation
・Thermal Shut Down：Self-restart
・Channel Number [ch]：1
・ON Resistance(Typ.)[mΩ]：20
・ON Resistance(Max.)[mΩ]：44
・DC Output Current @Ta=85℃ [A]：6.7
・Supply Voltage(Min.)[V]：6
・Supply Voltage(Max.)[V]：28
・Drain-Source Voltage (Max.)[V]：41
・Single Pulse Energy 25°C [mJ]：170
・Over Current Limit (Min.)[A]：34
・Under voltage Detection Level(Max.)[V]：4
・Current consumption(Typ.)[µA]：3000
・Open Load Detect [V]：2
・Junction Temperature Tj (Min.)[°C]：-40
・Junction Temperature Tj (Max.)[°C]：150
・Package Size [mm]：4.9x6.0 (t=1.0)
・包装形態：テーピング
・包装数量：2500
