TriC3 4.5 V to 60 V, Three-phase Brushless DC Motor Gate Driver [代引不可](BD67871MWV-EVK-003) ◆ROHM 取寄品◆
BD67871MWV-EVK-003
| web販売価格 : | ￥21,505(税込) 注文受付単位：1 |
|---|---|
| 在庫 : | 3 （現在庫数） |
| 送料区分 : | 送料サービス |
| メーカー : | ローム(ROHM) |
| 商品コード : | Q7TAYD |
| 品名／型番 : | TriC3 4.5 V to 60 V, Three-phase Brushless DC Motor Gate Driver [代引不可](BD67871MWV-EVK-003) ◆ROHM 取寄品◆ / BD67871MWV-EVK-003 |
| 登録日 : | 2026.9.25 |
概要
※表示されている在庫数はROHM社の「1〜2営業日前の在庫数」であり、弊社の実在庫数ではございません。
代引不可

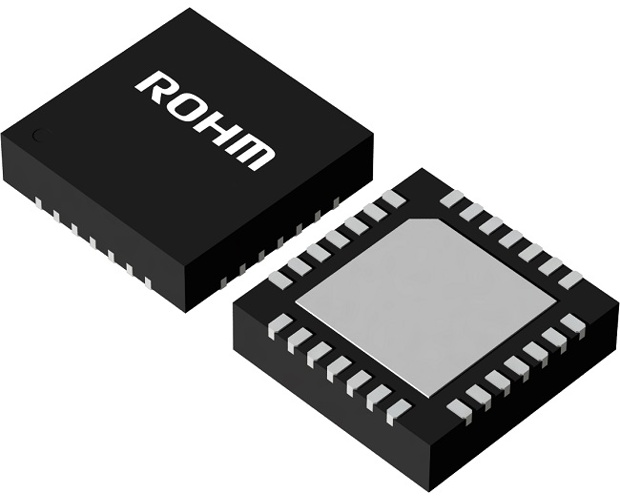

BD67871MWV-Z is mounted an Innovative Active Gate Drive (TriC3™) which suppresses EMI and reduces heat generation of MOSFET power devices in motor drive systems. TriC3™ achieves these functions by monitoring various voltages around the MOSFET power device and using this voltages information to intelligently control the gate drive current of the MOSFET power device. It is a gate driver IC designed for three-phase brushless DC motor applications. It can drive three half-bridges consisting of six N-Channel power MOSFETs up to 60 V. It has synchronous rectification function during bootstrap capacitor charging for efficiency. Despite the TriC3™ being a type of constant-current drive, it enables 100 % PWM Duty Cycle and high-impedance by trickle charge pumping.
※在庫欄の表示(納期)については目安の為、納期を保証するものではありません。
メーカーの在庫状況により、ご注文数をご用意できない場合がございますので、あらかじめご了承ください。
代引不可
BD67871MWV-Z is mounted an Innovative Active Gate Drive (TriC3™) which suppresses EMI and reduces heat generation of MOSFET power devices in motor drive systems. TriC3™ achieves these functions by monitoring various voltages around the MOSFET power device and using this voltages information to intelligently control the gate drive current of the MOSFET power device. It is a gate driver IC designed for three-phase brushless DC motor applications. It can drive three half-bridges consisting of six N-Channel power MOSFETs up to 60 V. It has synchronous rectification function during bootstrap capacitor charging for efficiency. Despite the TriC3™ being a type of constant-current drive, it enables 100 % PWM Duty Cycle and high-impedance by trickle charge pumping.
※在庫欄の表示(納期)については目安の為、納期を保証するものではありません。
メーカーの在庫状況により、ご注文数をご用意できない場合がございますので、あらかじめご了承ください。
詳細
【特長】
Innovation Active Gate Drive (TriC3™)
Multi Level Gate Drive Current Control
Real Time Gate Current Control Based on Information Sensed from the Output State
Dead Time Adjustment Control
60 V Three-phase Brushless DC Motor Gate Driver
Wide 4.5 V to 60 V Input Voltage Range
Bootstrap based Gate Driver Architecture
Synchronous Rectification Function during Bootstrap Capacitor Charging
Bootstrap Gate Driver with Current Source Circuit for 100 % Duty Cycle Operation and High-impedance (Hi-Z) State
Super Low IVCCQ (< 1 μA at Sleep Mode)
Supports 3.3 V, and 5 V Logic Inputs
Supports Negative Transients up to -5 V on *_SH
Supports IN/IN, and EN/IN Mode by UART
Compact QFN Packages and Footprints
UART Communication Protocol
TriC3™ Base Current can be selected as External Resistor or Internal Constant Current
Gate Driver Power Supply (VREG) has LDO and Charge Pump Functions
SHUNT pin allows Current Detection with External Resistors
Integrated Protection Features
VCC UVLO Protection
Bootstrap (V*_BST-*_SH ) UVLO Protection
VREG UVLO Protection
Thermal Shutdown
Fault Condition Indicator (xFAULT)
【特性】
・Vcc (Max.)[V]：65
・Type：Gate Driver (Current Control)
・Power Supply Voltage (Max.) [V]：60
・Power Supply Voltage (Min.) [V]：4.5
・Iout (Max.)[A]：0.5
・External FET：N+N
・Speed Control Input：PWM (6x/3x)
・For Fan Motor：-
・Operating Temperature (Min.)[°C]：-40
・Operating Temperature (Max.)[°C]：125
・Package Size [mm]：4.0x4.0 (t=1.0)
・包装形態：テーピング
・包装数量：2500
Innovation Active Gate Drive (TriC3™)
Multi Level Gate Drive Current Control
Real Time Gate Current Control Based on Information Sensed from the Output State
Dead Time Adjustment Control
60 V Three-phase Brushless DC Motor Gate Driver
Wide 4.5 V to 60 V Input Voltage Range
Bootstrap based Gate Driver Architecture
Synchronous Rectification Function during Bootstrap Capacitor Charging
Bootstrap Gate Driver with Current Source Circuit for 100 % Duty Cycle Operation and High-impedance (Hi-Z) State
Super Low IVCCQ (< 1 μA at Sleep Mode)
Supports 3.3 V, and 5 V Logic Inputs
Supports Negative Transients up to -5 V on *_SH
Supports IN/IN, and EN/IN Mode by UART
Compact QFN Packages and Footprints
UART Communication Protocol
TriC3™ Base Current can be selected as External Resistor or Internal Constant Current
Gate Driver Power Supply (VREG) has LDO and Charge Pump Functions
SHUNT pin allows Current Detection with External Resistors
Integrated Protection Features
VCC UVLO Protection
Bootstrap (V*_BST-*_SH ) UVLO Protection
VREG UVLO Protection
Thermal Shutdown
Fault Condition Indicator (xFAULT)
【特性】
・Vcc (Max.)[V]：65
・Type：Gate Driver (Current Control)
・Power Supply Voltage (Max.) [V]：60
・Power Supply Voltage (Min.) [V]：4.5
・Iout (Max.)[A]：0.5
・External FET：N+N
・Speed Control Input：PWM (6x/3x)
・For Fan Motor：-
・Operating Temperature (Min.)[°C]：-40
・Operating Temperature (Max.)[°C]：125
・Package Size [mm]：4.0x4.0 (t=1.0)
・包装形態：テーピング
・包装数量：2500
